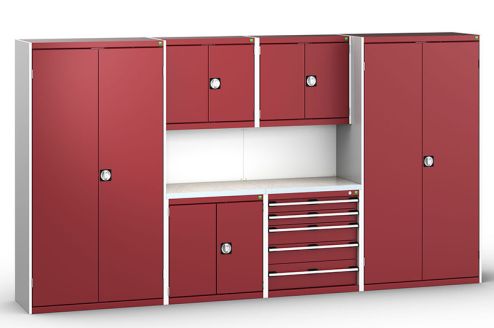

Bott Cubio 6 Cabinet Arrangement BC6PA

£4,951.00

sku: BC6PA

In Stock

This premium quality collection of Bott Cubio cabinets and worktops provides everything you would need in a 3700mm width. They are manufactured in the UK and built to last with a 10 years warranty. Please ask about variations on this theme.

Delivery Time 15 - 18 Working Days

Buy online or by telephone on 01743 742028 during office hours
Need advice or a detailed quotation? Call one of our garage interior design and installation experts.

The cabinets are finished in a top quality textured powder paint with a RAL7035 light grey housing, and a choice of four front colours as standard being RAL5010 gentian blue, RAL3004 crimson red, RAL7016 anthracite grey or RAL7035 light grey. Custom colours are available at extra cost.

Overall Dimensions: 3700mm Wide x 525mm Deep x 2000mm High
Please contact us about variations on this theme.

This set Includes:

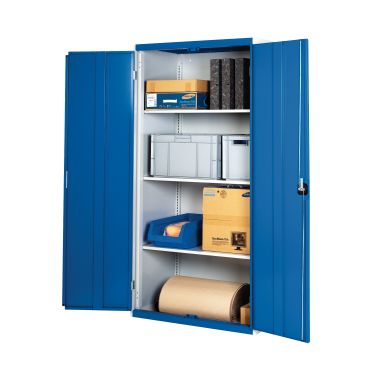

2 x 1050mm Wide Tall Cupboards

  • 3 Galvanised shelves 75kg U.D.L
  • 3-point door locking mechanism
  • 75kg capacity per shelf
  • Textured, powder coated finish

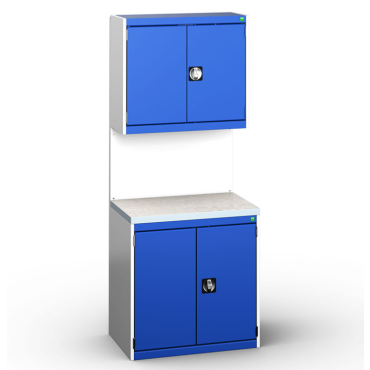

1 x 800mm Wide Free-Standing Cupboard Assembly with Overhead Cabinet (no need to drill walls)

Cupboard Features:

  • Rear fixings for vertical backstrap kits
  • 2 Galvanised shelves 100kg U.D.L
  • 3-point door locking mechanism
  • Powder coated finish
  • Perfo door liners for tool hook kits

Overhead Cabinet Features:

  • Rear fixings for vertical backstrap kits
  • 75kg UDL capacity
  • Single galvanised shelf
  • 325mm deep x 700mm high
  • Perforated rear panel and doors for tool hook kits

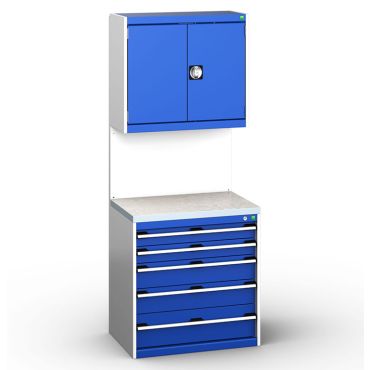

1 x 800mm Wide Free-Standing Drawer Assembly with Overhead Cabinet

Drawer Cabinet Features:

  • Rear fixings for vertical backstrap kits
  • UDL capacity of 1 tonne
  • 75kg UDL capacity drawers
  • Drawer locking mechanism - anti tilt
  • 100% Drawer extensions
  • Ergonomic handles as standard

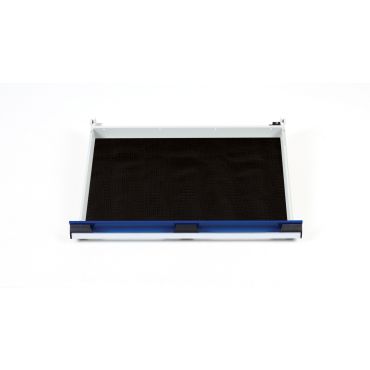

  • Drawer inlay mats available by clicking here INLAY MATS

Drawer configuration - 2 x 100mm, 2 x 150mm, 1 x 200mm deep

Overhead Cabinet Features:

  • 75kg UDL capacity
  • Single galvanised shelf
  • 325mm deep x 700mm high
  • Perforated rear panel and doors for tool hook kits

2 x 800mm Wide by 40mm Thick Lino Worktops

2 x plain back panels (perforated or louvered may be specified by telephone order)
