Garage Wall Storage EVOPanel™ Kit - 19 Accessories EP162
Part of the Garage Cabinets collection
sku: EP162
A pre-prepared kit of 8 x 4ft (1220mm) or 4 x 8ft (2440mm) heavy duty panels to cover an area of 3.02m² with 19 accessories.
Price includes delivery to most of the UK mainland. More info
Buy online or by telephone on 01743 742028 during office hours
Need advice or a detailed quotation? Call one of our garage interior design and installation experts.
A pre-prepared kit to cover an area of 3.02m² with 19 accessories. EVOPanel™ panels can be cut to the desired lengths if required using wood-working tools.
A twist lock mechanism secures your hooks and baskets to the wall panels.

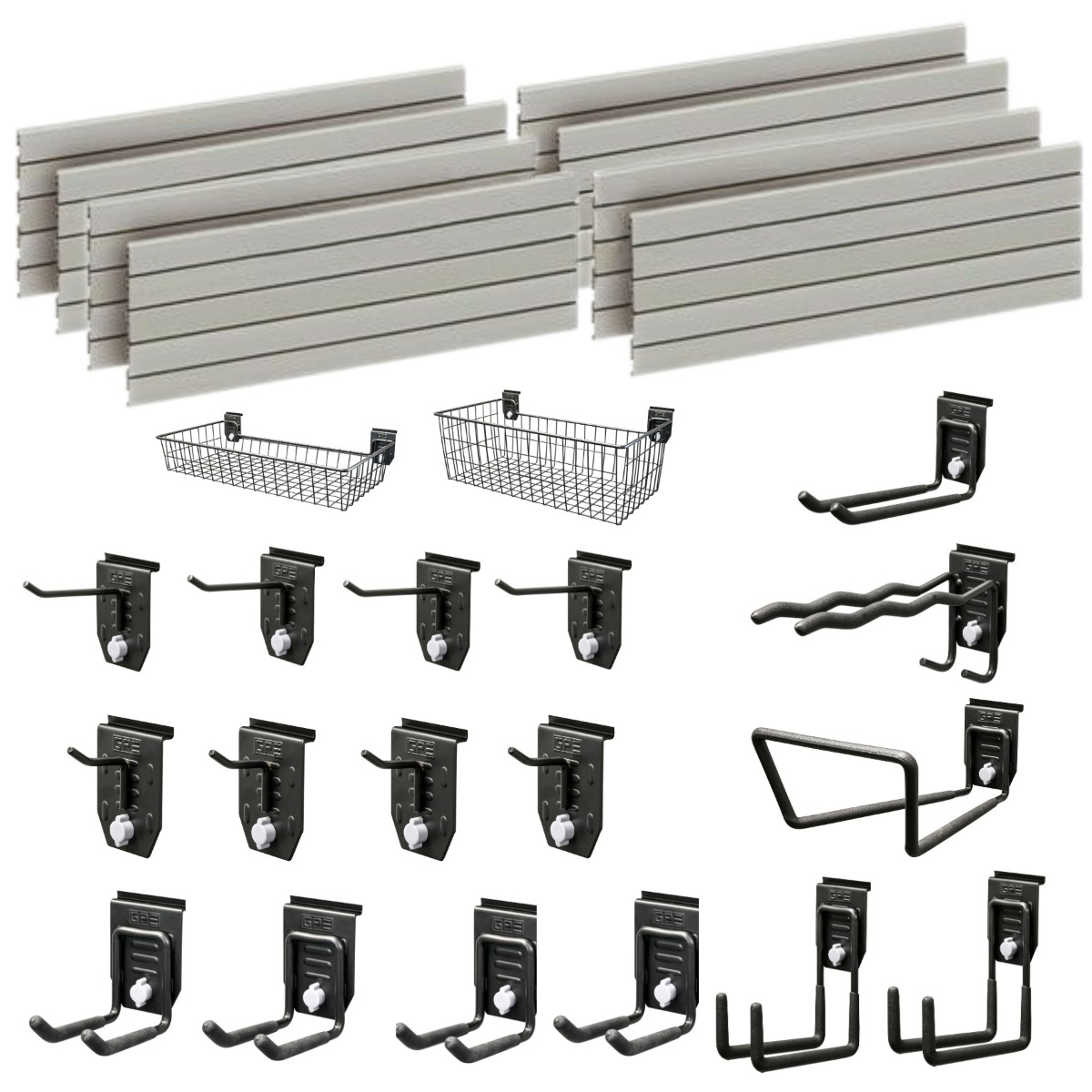

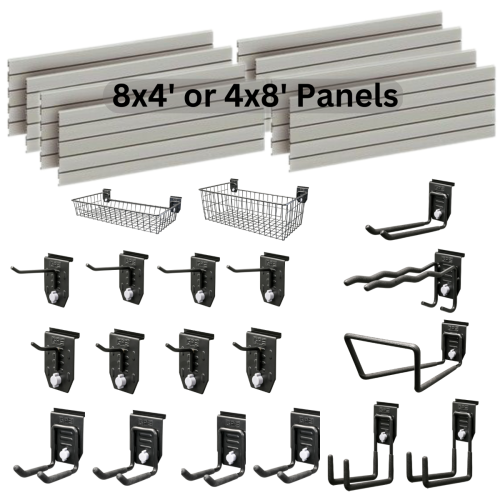

EP162 kit content
- 8 x EVOPanel™ Panels - 1.22m (4ft) long x 0.310m high (Selection required)
- 4 x EVOPanel™ Panels - 2.44m (8ft) long x 0.310m high (Selection required)
- 1 x Utility Hook Black Small
- 1 x Double Hook Black 200mm
- 1 x Multi-Purpose Hook Black
- 2 x Cradle Hook Black Large
- 4 x Double Hook Black 100mm
- 4 x Single Prong Hook Black 50mm
- 4 x Single Prong Hook Black 100mm
- 1 x Shallow Basket Black W600, D300, H110mm
- 1 x Deep Basket Black W600, D300, H210mm
- Mounting Strips Included.
-
How do I install the panels?
Install Strips fixed to the wall, ideally at 600mm intervals, provide multiple panel support points and increase load capacity. Once these are secured, the panels sit securely on the teeth of the strips and are ready to use. Install strips are not entirely necessary as panels can be fixed directly to the wall. However they do provide a more satisfactory installation and no screw heads are visible.
Can I cut the panels?
Yes, they can be cut to length using wood-working tools.
How many install strips do I need?
When fitting an area of panels to a wall, it is normal practice to place three panels (whether 4ft or 8ft long) one above the other. Or if you wish to nearly fill the wall floor to ceiling, six panels one above the other
You require five Install Strips for every three 8ft panels spaced at 600mm intervals, and three strips for every three 4ft panels.
For greater flexibility, Install Strips have snap points at which they can be readily divided into three smaller pieces.
If you are covering a large area with 8ft panels, then you can obtain a very close approximation for the quantity of Install Strips by dividing the number of panels by 3 and multiplying by 5.
So fifty 8ft panels would require (50/3) x 5 = 83 strips
The kits that we have on the website include the install strips. This is something to bear in mind to save ordering too many install strips.
Install strips are best fitted onto wooden battens or studding. If you are fitting the panels to a brick or cinder block wall, then we recommend that you fit vertical wooden battens first, at 600mm intervals. This will eliminate any undulations in the brickwork that might make it difficult to locate some of the panels onto the Install Strip teeth.
Will my wall be able to take the weight of the StorePanel?
This very much depends on the wall you are installing the panels on to. If it is going into a brick or breeze block it will be fine.
StorePanel is only going to be as strong as the wall that it is on so although a plaster board wall would take the weight of the panels, it would not take the weight of the items that you hang from it. It is essential therefore that the install strips are attached to the studding so the panels are able to meet your storage needs.
What is the maximum load for the StorePanel panels?
The panels are made of a high density heavy duty material. There is no definitive load capacity but customer do hang heavy items off them such as gym weights and medium duty lawn mowers. Be sure to spread the load however using 2-3 hooks.
It is very important however, that the install strips are installed correctly and into a wall that is strong enough to take the weight you wish to hang from it.
Can I order a combination of 8 foot and 4 foot panels?
While you can do this, we do recommend against it. The different size panels will be made in different batches we find that there can be a shade difference between the two and if placed side by side does not look a perfect match.
The panels are very easily cut down to size, so we would recommend using all 8 foot or all 4 foot in your design.
What can I do about edges and joins?
We have a selection of different shaped strips that can be placed over joins and the edges. Although the joints and edges are finished well these strips are available should you want a professionally finished look to your wall.
How will my StorePanel™ items arrive?
This very much depends on the size of your order. If it is a large order then they will arrive on a pallet to your door. 8ft panels are delivered on a double oversize pallet for their protection. For smaller orders we use a courier such as UPS to get you your items.
In both cases we will contact you first to book in a suitable day for you to receive your items.
Delivery of Goods
We will endeavor to have the goods delivered as soon as possible in line with the lead times stated on the product pages. Please note that Bott and EVOline products are bespoke so therefore delivery times may vary from 7-10 days, 10-15 days, and 15-18 days. We will let you know if we are aware of delays. If you do not receive your goods or contact from the carrier within a reasonable time please contact us by telephone or e-mail.
Cabinet Deliveries
Returns
A consumer has the right to cancel the purchase of an item or service without having to give any reason at any time within the "cooling off period" of fourteen working days, beginning in the case of goods, on the day after you receive the goods, and in the case of services, beginning on the day after you purchase the services.
Please be aware that you will lose your right to cancel a contract for the provision of services during the cooling-off period once we have commenced activation of the services or you use the services, whichever is earlier.
You must notify us of your cancellation in writing or in another durable medium to our contact address or by email to the email address from which your order confirmation was sent.
If you are in possession of the goods you are under the duty to retain them and take good care of them. We will make arrangements to collect the goods from you Monday to Friday. You must make them available and ready for collection. We reserve the right to charge for the direct costs of recovery. Once you have notified us that you wish to cancel the contract any sum debited to us will be refunded to you, less our direct costs of recovery, as soon as possible and in any event within 30 days of your cancellation.
You will not have the right to cancel a purchase for the supply of goods made to your specifications or clearly personalized or by which of their nature cannot be returned.
B2B (business to business) customers do not have a right to cancel once goods have been delivered.
Customer Services
- In the first instance please contact GaragePride Ltd on 01743 742028 or by email at [email protected], stating clearly the nature of your query.
- Your query will be dealt with as soon as practical but not later than within 5 working days by one of the Customer Services Team.
- If for any reason an answer cannot be provided within 5 working days, we will inform you of the reason for this and keep you updated as to its progress.
You may also like
-

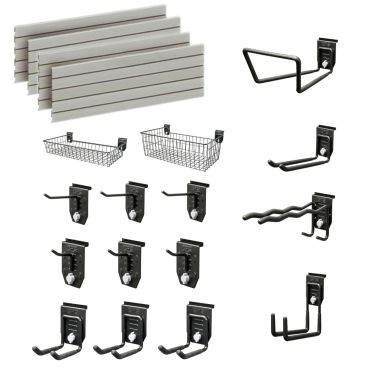

Garage Wall Storage EVOPanel™ Kit - 15 Accessories EP161 - 1220A pre-prepared kit of 4 x 4ft (1220mm) heavy duty panels to cover an area of 1.5m² with 15 accessories.
